Table Top Dip Coater

This machine can dip coat at micrometer speed on the glass, acrylic,
copper foil and tube shaped materials. (It can be adjusted by 100μm /sec.)
It is suitable for forming demarcation membranes and nanometre thickness films.
Operated by the touch panel, it is easy and stable to operate for anyone, anywhere.
Setting the stoppage points , changing the speed (by 100μm), repeating the motions and recording the
motion patterns are easily operated on the touch panel.

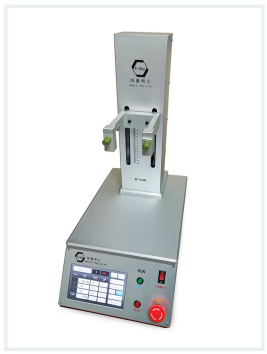

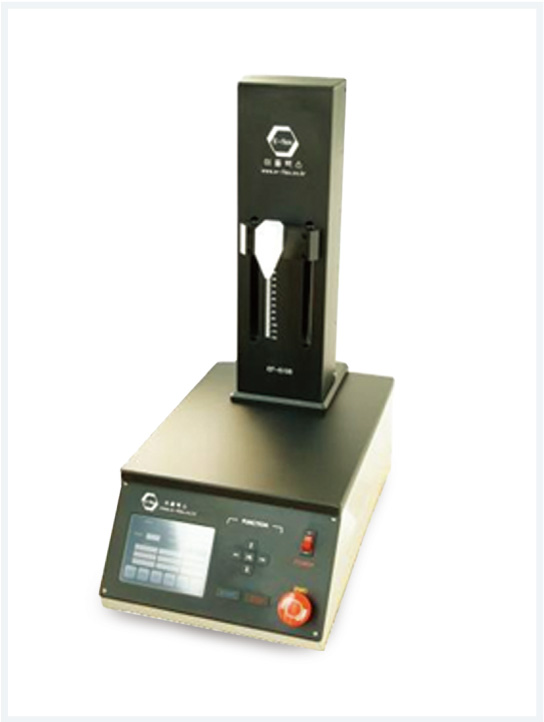

▲ EF-4100 / ▲ EF-4200

▲ EF-4300



ㅣ Specification
Model
EF-4100
EF-4200
EF-4300
Display Touch panel for easy operation
Sample size Max.100mm x 100mm Max.200mm x 200mm Max.300mm x 300mm
Extracting speed 100㎛/s ~ 50㎜/s
Stroke 0 ~ 105㎜ 0 ~ 205㎜ 0 ~ 305㎜
Stop time 0~999 seconds
Repetition 1 ~ 99 times
Program 11 programs, 3 steps/program, Jog Function
Dimension 300W*650H*500㎜L, 20㎏ 400W*850H*500㎜L, 25㎏ 500W*950H*600㎜L, 30㎏
Material Steel, Al alloy
Power 220V, 50/60㎐, 100VA
Sample holder 2ea
Option Wind Shield Cover, Stainless Steel Bath
* 필요하신 Sample Size에 대응 가능하며 양산용 제작 가능합니다.
Micro Dip Coater

This machine can dip coat at micrometer speed on the glass, acrylic,
copper foil and tube shaped materials. (It can be adjusted by 1um /sec.) It is suitable for forming
demarcation membranes and nanometre thickness films. Operated by the touch panel, it is easy and
stable to operate for anyone, anywhere. Setting the stoppage points , changing the speed (by 1um),
repeating the motions and recording the motion patterns are easily operated on the touch panel.

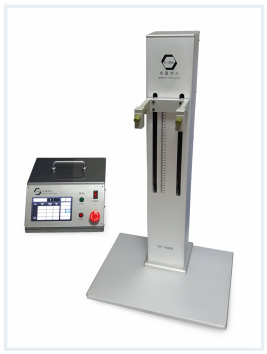

▲ EF-5100 / ▲EF-5200

▲ EF-5300



ㅣ Specification
Model
EF-5100
EF-5200
EF-5300
Display Touch panel for easy operation
Sample size Max.100mm x 100mm Max.200mm x 200mm Max.300mm x 300mm
Extracting speed 1㎛/s ~ 50㎜/s
Stroke 0 ~ 105㎜ 0 ~ 205㎜ 0 ~ 305㎜
Stop time 0~999 seconds
Repetition 1 ~ 99 times
Program 11 programs, 3 steps/program, Jog Function
Dimension 300W*650H*500㎜L, 20㎏ 400W*850H*500㎜L, 25㎏ 500W*950H*600㎜L, 30㎏
Material Steel, Al alloy
Power 220V, 50/60㎐, 100VA
Sample holder 2ea
Option Wind Shield Cover, Stainless Steel Bath
* 필요하신 Sample Size에 대응 가능하며 양산용 제작 가능합니다.
Nano Dip Coater

This machine can dip coat at nano speed on the glass, acrylic,
copper foil and tube shaped materials. (It can be adjusted by 1nm /sec.) It is suitable
for forming demarcation membranes and nanometre thickness films. Operated by the touch panel,
it is easy and stable to operate for anyone, anywhere. Setting the stoppage points , changing the speed (by 1nm),
repeating the motions and recording the motion patterns are easily operated on the touch panel.

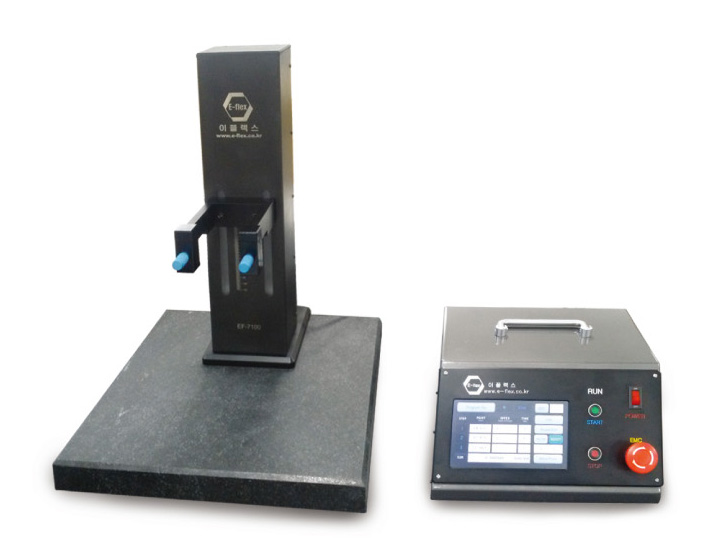

▲ EF-7100



ㅣ Specification
Model
EF-7100
Display Touch panel for easy operation
Sample size Max.100mm x 100mm
Extracting speed 1nm/s ~ 1㎜/s
Stroke 0 ~ 105㎜
Stop time 0~999 seconds
Repetition 1 ~ 99 times
Program 11 programs, 3 steps/program
Dimension 300W*650H*500㎜L, 30㎏
Material Granite, Al(A505), SUS304
Power 220V, 50/60㎐
Sample holder 2ea



Multi Dip Coater



▲ EF-6100



ㅣ Specification
Model
EF-6100
Display Touch panel for easy operation
Sample size Max.100mm x 100mm
Extracting speed 100㎛/s ~ 50㎜/s
Stroke 0 ~ 105㎜
Stop time 0~999 seconds
Repetition 1 ~ 99 times
Dip Position Three Dip Position
Program 11 programs, 3 steps/program
Dimension 300W*650H*500㎜L, 25㎏
Material Steel, Al alloy
Power 220V, 50/60㎐
Sample holder 1ea

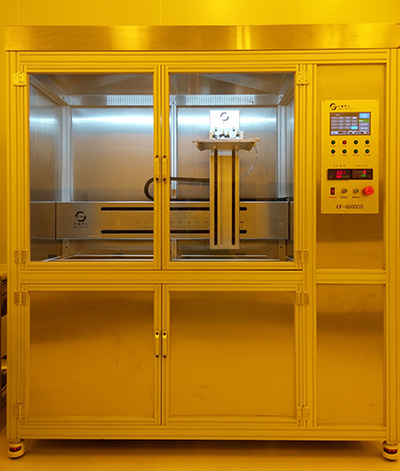

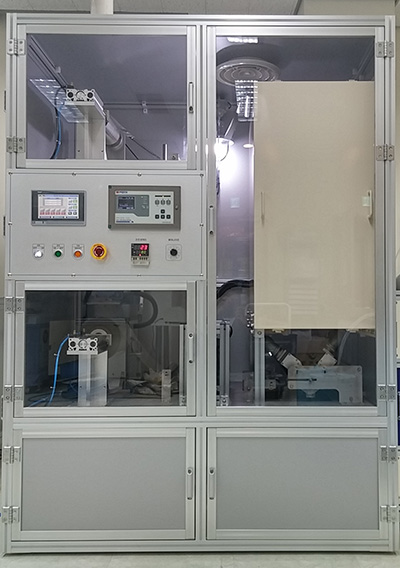

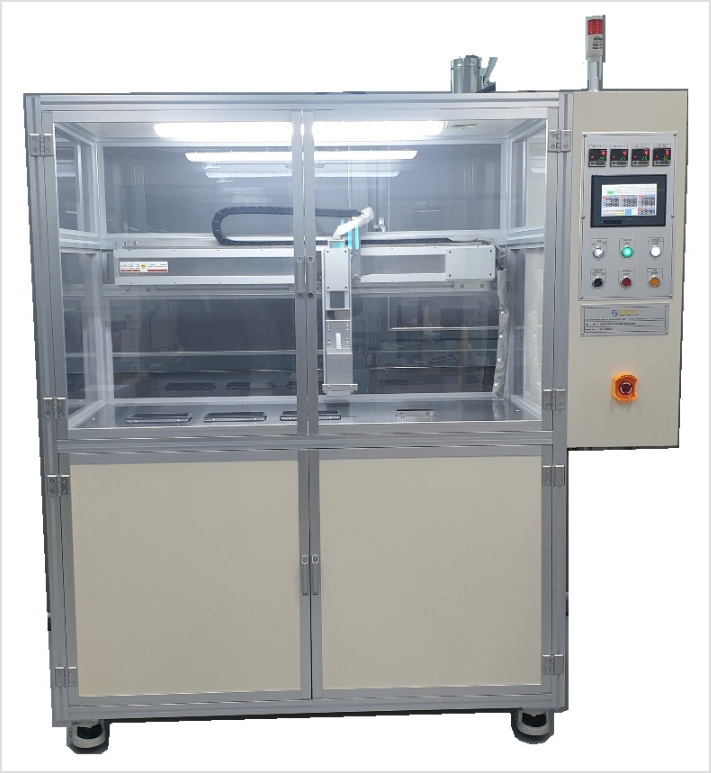

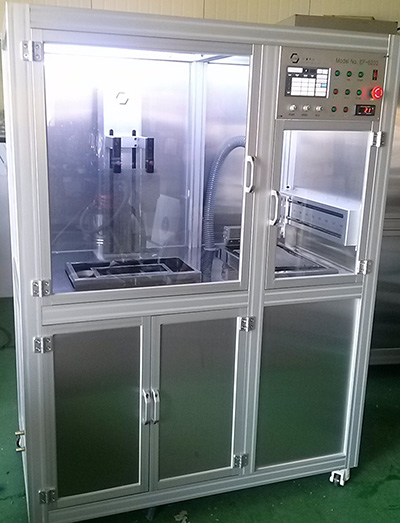

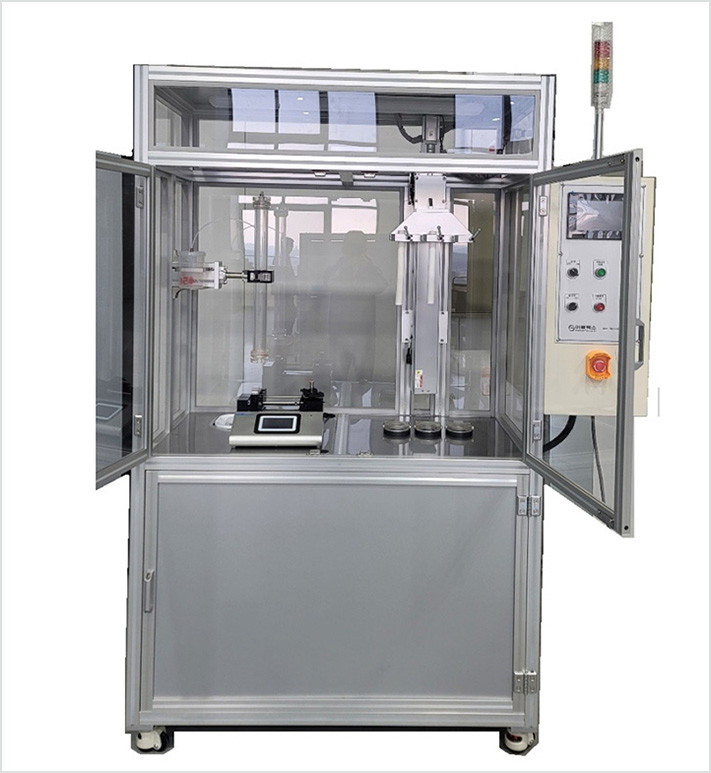

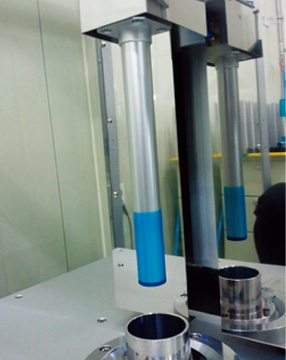

주문제작 Dip coater(Customized Product)




※ 사용 목적에 따라 주문 제작이 가능하오니 기술영업부에 문의 바랍니다




ㅣ Option

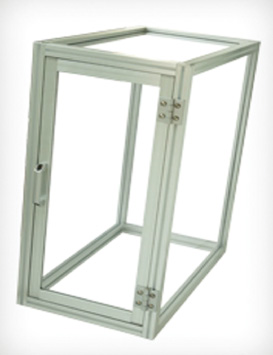

Wind Shield Cover

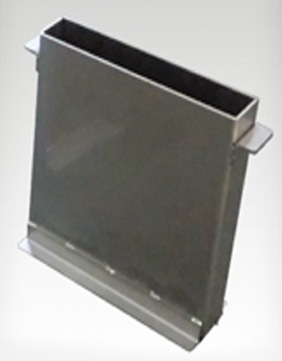

SUS Bath


※ 샘플 사이즈와 모양에 따른 Sample Holder, 수조 제작 가능합니다



ㅣ 납품 실적 (User list)
대학교

서울대학교, 경희대학교, 전북대학교, 부산대학교, 인하대학교, 성신여자대학교, 아주대학교, 경북대학교, 세종대학교, 성균관대학교, 고려대학교, 강원대학교, 경성대학교, 충남대학교, 전남대학교, 포항공과대학교, 인제대학교, 한양대학교, 순천향대학교, 울산과학기술대학교, 한남대학교, 광주과학기술원, 한림대학교, 순천향대학교, 연세대학교, 배재대학교, 한국교통대학교, 서울산업대학교, 경기대학교, 이화여자대학교, 한국방송통신대학교, 대전대학교, 가천대학교, 숭실대학교, 한국산업기술대학교, 광운대학교, 동국대학교, 인천대학교, 건국대학교, 한경대학교

연구소

한국화학연구원(KRICT), 한국생산기술연구원(KITECH), 한국세라믹기술원(KICET),나노융합실용화센타, 한국전자부품연구원(KETI), 한국과학기술연구원(KIST), 다이텍연구원, 한국건설기술연구원(KICT), 한국에너지기술연구원(KIER), 나노바이오연구센타, 재료연구소(KIMS), 포항산업과학연구원(RIST), 한국기계연구원(KIMM), 한국원자력연구원, 한국과학기술원(KAIST)

기업체

삼성전자, 현대자동차, 삼성종합기술원, 삼성SDI, 삼성디스플레이, 탑나노시스, 인탑스, 쌍용머티리얼, 엘앤에프, 동아켐텍, 대주나노솔라, JCN CHEM, 티모테크놀러지, 미뉴타텍, 그래핀스퀘어, 대림코퍼레이션, 솔잎기술, 노루페인트, 포인트엔지니어링, 켐트로닉스, 동진세미켐, 나노화인텍, 레젠, 티지오테크, 도은, 켐이, 경동원, 삼광라스, 디오, 앰트, 엠엔지솔루션, 쎄코, AK켐텍
